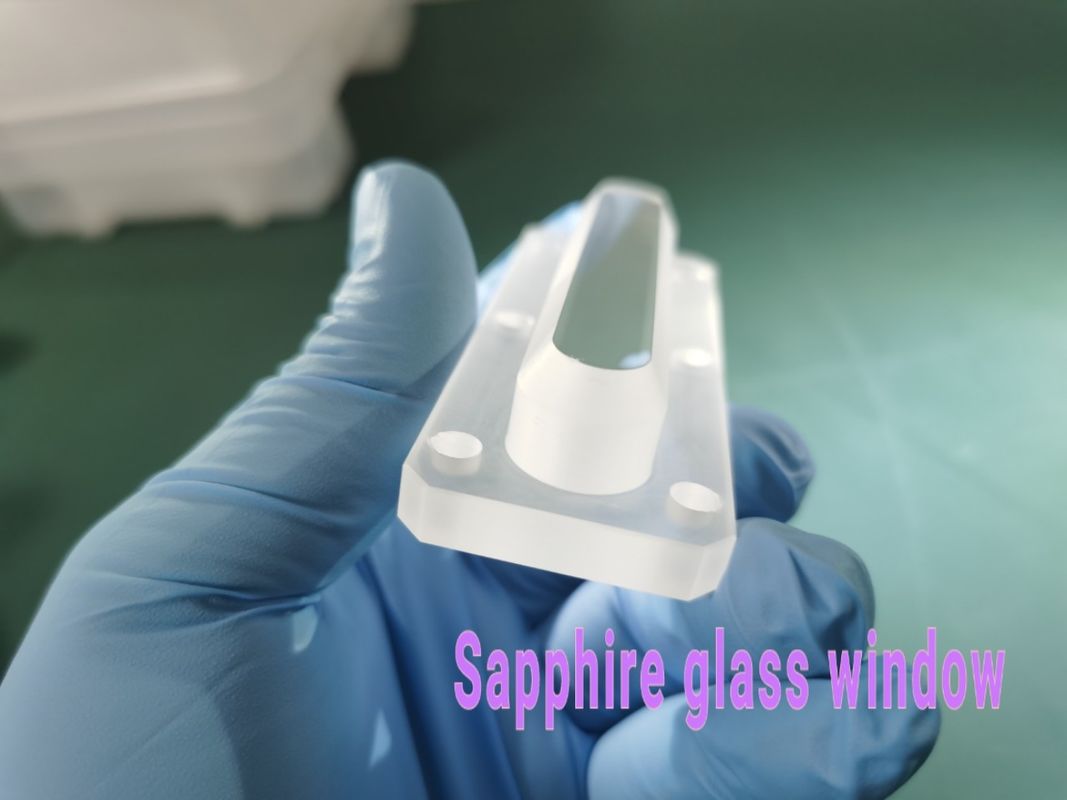

Sapphire Optical Window with step hole for Equipment observation glass lens
Sapphire body→Slicing→Edge Chamfering→Lapping→Annealing→Polishing→Inspection→Cleaning&Packing
Rough ＆ Polished windows process capacity
|Diameter Tolerance||+/-0.03 mm|
|Thickness Tolerance||+/-0.01 mm|
|Cler Aperture||over 90%|
|Surface Quality||80/50~10/5 scratch and dig|
|Chamfer||0.1-0.3 mm x 45 degree|
|Focal Length Tolerance||+/-2%|
|Back Focal Length Tolerance||+/-2%|
|Usage||opticl system, photographic sysem, Lighting system,Electronic apparatuse.g.laser,camera,monitor,projector,magnifier,telescope,polarizer,electronic instrument,led etc.|
Our Related Products
LiTaO3 ingot Sapphire wafers Colored Blue/ Red/ Yellow/ Green/ Sapphire crystal
SiC / GaN/ GaAs/ GaP/ Silicon/ InP / Substrates MgO /GGG/ LaAlO3/ SrTiO3/ crystal
Q: What is your minimum order requirement?
A: MOQ:1 piece
Q: How long will it take to execute my order ?
A: After confirming the payment.
Q: Can you give warranty of your products ?
A: We promise the quality, if the quality has any problems, we will produce new produces or return you money.
Q: How to pay?
A: T/T, Paypal, West Union, bank transfer and or Assurance payment on Alibaba and etc.
Q: Can you produce custom optics?
A: Yes, we can produce custom optics
About Our Company ＆ Factory
ZMKJ has been fabricating micro to large sapphire windows, sight glasses and flats for over 10 years. Although sapphire is often more costly than glass and other transparent materials, its exceptional properties can ultimately save money and reduce critical down time, often eliminating the need for PM periodic replacements.
We are also specialize in providing a varity of materials wafers, substrates, components, products are widely used in electronics, optics, optoelectronics and many other fields. We've been working closely with many domestic and oversea universities, research institutions and companies, provide customized products and services for their R&D projects.
It's our vision to explore and develope cutting edge application of new materials with customers together.
