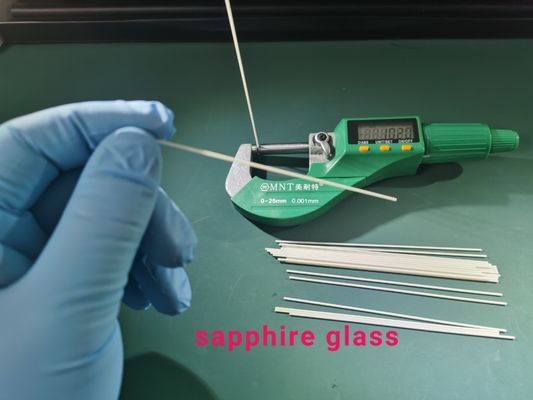

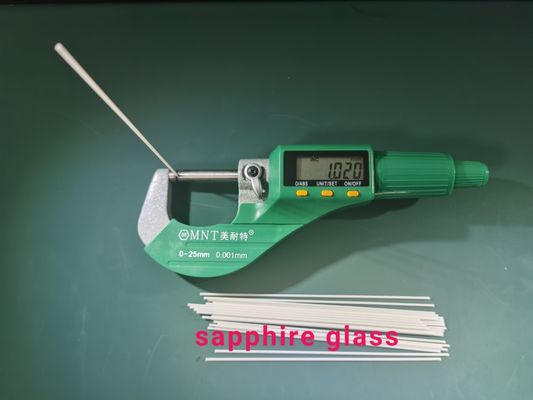

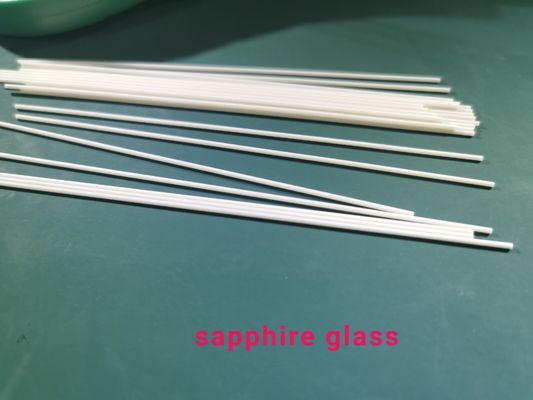

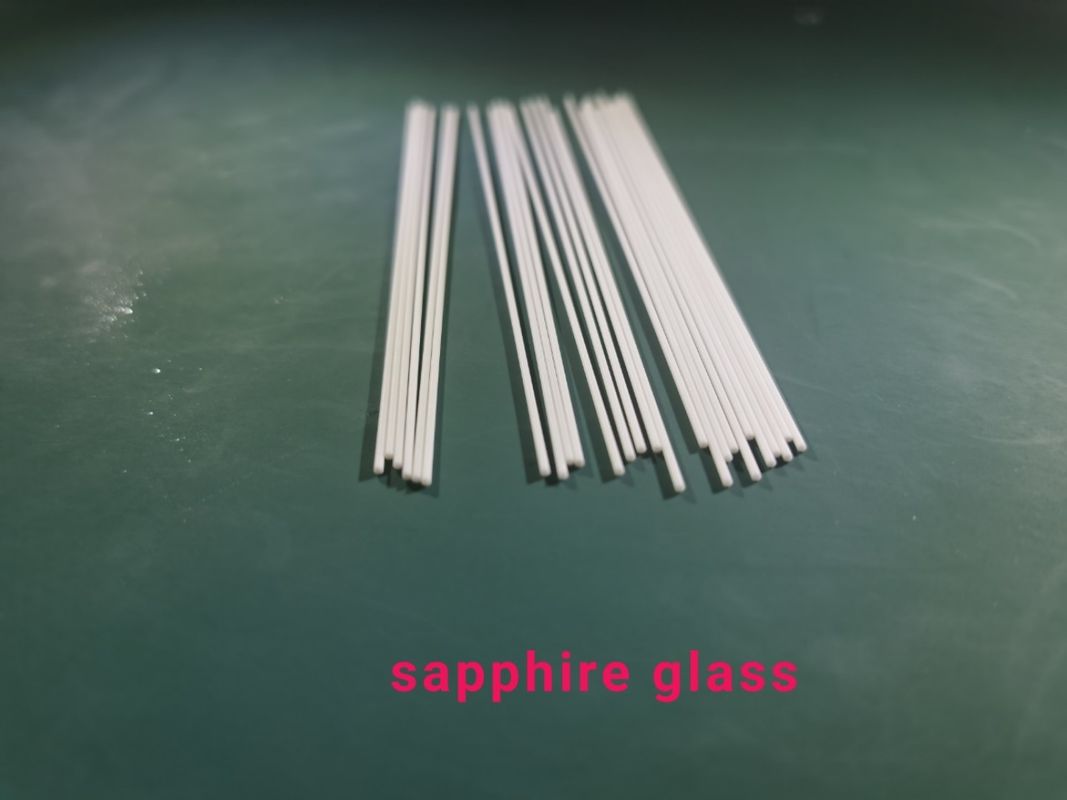

Ultra-fine thin dia1.0mm 0.6mm Al2o3 Ceramic Sapphire Glass Rod Stick lapped surface
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | zmkj |
| Model Number: | dia1x120mmt sapphire |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | by case |
| Packaging Details: | packed in Capacitor paper +Sponge paper+paper case |
| Delivery Time: | 1-3weeks |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500-5000pcs per month |
|
Detail Information |
|||
| Material: | Al2o3 Ceramic | Orientation: | C-axis |
|---|---|---|---|
| Surface S/D: | Lapped | Tolerance: | ±0.03mm |
| Grade: | Optical Grade Without Bubble;color | Transmittance: | ＞70％ At 200nm |
| Diamter: | 1mm | Length: | 100-150mm |
| Material: | Sapphire,BK7,UV Fused Silica | Shape: | Cylindrical |
| Usage: | Optical,high Temperature View Equipment Glass | Product Name: | Optical Circular Sapphire Quartz Windows,HS BK7 Windows Fused Silica Windows Sapphire Windows Optical Windows,sapphire Glass Disks Winows |
| Thickness: | 0.1-100mm | Application: | Laserrs |
| Name: | Sapphire Window / Optical Sapphire Window / Sapphire Glass Windows | ||
| High Light: | 120mm sapphire stick,al2o3 sapphire stick,al2o3 ceramic sapphire |
||
Product Description
Ultra-fine thin dia1.0mm 0.6mm Al2o3 Ceramic Sapphire Glass Rod Stick lapped surface
SAPPHIRE WINDOWS TRANSMIT LIGHT FROM BELOW 190NM TO OVER 5 MICRONS:
- A sapphire optical window is the ideal window material for many UV and IR applications because it can transmit so far into the UV
nd IR bands. With its thermal and chemical robustness, a sapphire window can be exposed to extreme plasmas and temperatures, far greater than any other material, and continue to transmit high powered UV, visible and IR for years with no degradation. These properties make it an ideal material for UV/VIS/IR sensors, IR surveillance and recon and broad band inspection equipment (especially when abradants are involved). - Sapphire windows are the ideal material for pyrometry. They transmit a wide range of wavelengths while safely isolating hot zones up to 2000C from external room temperature observation; making sapphire windows the ideal sight window for furnaces and high temperature processing equipment.
- Medical and dental tools that require UV sterilization and curing and IR thermal processing are typical applications where sapphire windows and transparent tools excel.
- .high temperature resistant, Sapphire Round / Rectangular Optical Window can work under 1200°C continuously,and in short time can even work under 1450°C,its softening temperature is 1650°C,and the melting temperature is 1750-1800°C.
Sapphire Processing
Sapphire body→Slicing→Edge Chamfering→Lapping→Annealing→Polishing→Inspection→Cleaning&Packing
Rough ＆ Polished windows process capacity
| Name | sapphire rod/sticks |
| Material | Sapphire, quartz |
| Diameter Tolerance | +/-0.03 mm |
| length Tolerance | +/-0.1mm |
| Cler Aperture | over 90% |
| Flatness | ^/4 @632.8nm |
| Surface Quality | fine ground |
| diameter | 0.4～1mm |
| Chamfer | 0.1-0.3 mm x 45 degree |
| Focal Length Tolerance | +/-2% |
| Back Focal Length Tolerance | +/-2% |
| Coating | available |
| Usage | opticl system, photographic sysem, Lighting system,Electronic apparatuse.g.laser,camera,monitor,projector,magnifier,telescope,polarizer,electronic instrument,led etc. |
Our Related Products
LiTaO3 ingot Sapphire wafers Colored Blue/ Red/ Yellow/ Green/ Sapphire crystal
SiC / GaN/ GaAs/ GaP/ Silicon/ InP / Substrates MgO /GGG/ LaAlO3/ SrTiO3/ crystal
- We can fabricate the sapphire glass from rough material plate to polished window
- We have the very Fast delivery capacity within 15days by Customized size
- In addition,we Support { ONE WEEK REFUND MONEY} if not qualified.
- We also can make substrates, wafers, rods,Bump join; Lens with step＆hole
Q: What is your minimum order requirement?
A: MOQ:1 piece
Q: How long will it take to execute my order ?
A: After confirming the payment.
Q: Can you give warranty of your products ?
A: We promise the quality, if the quality has any problems, we will produce new produces or return you money.
Q: How to pay?
A: T/T, Paypal, West Union, bank transfer and or Assurance payment on Alibaba and etc.
Q: Can you produce custom optics?
A: Yes, we can produce custom optics
About Our Company ＆ Factory
ZMKJ has been fabricating micro to large sapphire windows, sight glasses and flats for over 10 years. Although sapphire is often more costly than glass and other transparent materials, its exceptional properties can ultimately save money and reduce critical down time, often eliminating the need for PM periodic replacements.
We are also specialize in providing a varity of materials wafers, substrates, components, products are widely used in electronics, optics, optoelectronics and many other fields. We've been working closely with many domestic and oversea universities, research institutions and companies, provide customized products and services for their R&D projects.
It's our vision to explore and develope cutting edge application of new materials with customers together.
