Detection Equipment Sapphire Optical Windows High Pressure Resistant
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | zmkj |
| Model Number: | dia76mm/dia87mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3pcs |
|---|---|
| Packaging Details: | packed in Capacitor paper +Sponge paper+paper case |
| Delivery Time: | 1-3weeks |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500pcs per month |
|
Detail Information |
|||
| Material: | Sapphire Optical | Orientation: | C-axis |
|---|---|---|---|
| Surface S/D: | Double Side Polisehd 60/40 | Tolerance: | ±0.1mm |
| Application: | For Device Viewing Window | Grade: | Optical Grade Without Bubble;color |
| Ttransmittance: | 99% At 635nm After Coating | ||
| High Light: | optical window glass,sapphire crystal glass |
||
Product Description

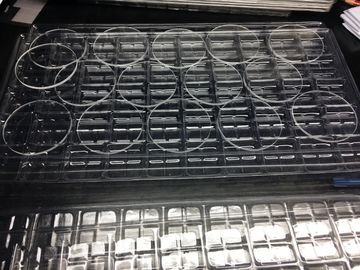

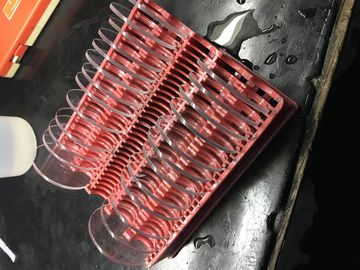

Gas Detection Equipment Sapphire Optical Windows High Pressure Resistant
Plano sapphire device viewing window by customized rectangle 193x60x7mmt sapphire window lens ＆Sapphire optical Windows Manufacturers.High transmittance 99% at 635nm after coating 1/4lambda flatness dia50/dia60/dia100mm sapphire optical lens
Optical windows are applied for protecting fragile optical components inside an equipment or directly used for watching windows because of its very good physical property.
they are adopted to isolate two physical environments while allowing light to pass. Optical Sapphire windows refer to a piece of transparent optical material that allows light into an optical instrument. They are pieces of optical glasses with ground and polished faces that are relatively parallel.
Optical Sapphire window Specifications:
| Structure | Square plano lens |
| Substrate Material | Glass Sapphire |
| Diameters ＆Thickness Available | 1 mm to 400mm for Diameter ,0.08-300mm for Thickness |
| DiameterTolerance | +0.00/-0.10 mm |
| Surface Quality | 60-40 Scratch-Dig(general) 10-5 to 80-50 is available |
| Surface Flatness | 1/4 lambda to 3lambda |
| Surface Irregularity (Peak to Valley) |
commonly 1-3λ |
| Thickness tolerance | +/-0.1mm or better |
| Focal length tolerance | +/-1% |
| Clear Aperture | >90% of Diameter |
| Chamfer | 0.05-0.5mmx45degree,according to customer’s needs. |
| Centration | 3 arc min |
| Coating |
AR,Mgf2 is on request,R<0.25% |
- We will fabricate as the drawings and requirements rigorously.
- We have the very Fast delivery capacity within 15days by Customized size
- In addition,we Support { ONE WEEK REFUND MONEY} if not qualified.
- We also can make substrates, wafers, rods,Bump join; Lens with step＆hole
Packing and Delivery-
1. We will use protective plastic and customized boxed to pack.(Enviroment friendly material)
2. We could do customized packing according to the quantity.
3. DHL/Fedex/UPS Express usually takes about 3-7working days to the destination.
