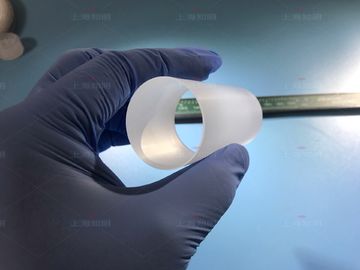

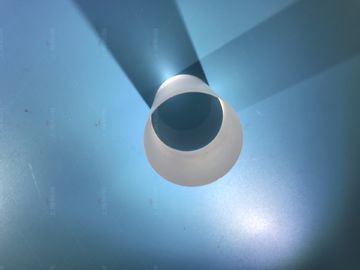

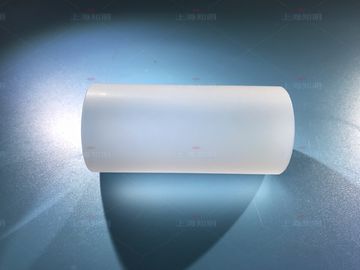

Synthetic Sapphire Components Sapphire Optical Cylindrical Mirror Lens High Performance
Product Details:
| Place of Origin: | china |
| Brand Name: | zmkj |
| Model Number: | sapphire rod lens |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3pcs |
|---|---|
| Price: | by case |
| Packaging Details: | plastic bag |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000pcs per month |
|
Detail Information |
|||
| Material: | Sapphire Crystal | Surface: | Polished Or Rough |
|---|---|---|---|
| Orientation: | C-AXIS | Application: | Machine Window |
| Hardness: | 9.0 | Shape: | Cylindrical Mirror Lens |
| Highlight: | sapphire optics,sapphire lens |
||
Product Description
sapphire Cylindrical mirror lens , Al2O3 sapphire single crystal glass rod lens ,sapphire optical glass ingots, sapphire optical rods,sapphire optical stick,Al2O3 single crystal glass lens,optical glass ingots by sapphire ,sapphire optical rods
Abstract
Synthetic sapphire components, such as sapphire optical cylindrical mirror lenses, are widely recognized for their high performance and exceptional durability. Due to sapphire’s superior hardness, thermal stability, and resistance to chemical corrosion, these lenses are ideal for demanding environments and applications that require precision and reliability. Sapphire optical cylindrical mirror lenses offer excellent transparency across a broad range of wavelengths, making them suitable for use in optical systems, laser technologies, and high-precision instruments. Their ability to maintain optical clarity and structural integrity under extreme conditions makes sapphire an outstanding material for high-performance optical components.
What is sapphire?
Synthetic Sapphire is a single crystal form of corundum, Al2O3, also known as alpha-alumina, and single crystal Al2O3,have 9.0 hardness.
Sapphire is aluminium oxide in the purest form with no porosity or grain boundaries, making it theoretically dense.
The combination of favourable chemical, electrical, mechanical,optical, surface, thermal, and durability properties make sapphire a preferred material for high performance system and component designs. For various semiconductor applications,
sapphire is the best choice in comparison with other synthetic single-crystals.
| Product name | industrial sapphire wafer |
| sapphire optical lens chemical formula | AL2O3 |
| Crystal structure | Hexagonal |
| Hardness Mohs | 9H |
| Compressvise strength | Gpa 2.0 |
| Density(20℃) | 3.98g/cm |
| Fusion point | 2040℃ |
| Boiling point | 2980℃ |
| Coefficient of Thermal Expansion | α=5.8×10 -6 /K |
| Specific heat | 0.418W.s/g/k |
| Thermal conduction | 25.12W/m/k(@100°C) |
| Optical transmission range | 0.17-5.5μm |
| Transmission(0.3~5um) | 85-88% |
| Refractive index | no=1.768nd |
| ne=1.76nd | |
| dn/dt | 13×10-6/K(@633nm) |
| Permittivity | 11.5(//c), 9.3(⊥c) |
| Product name | industrial sapphire wafer |
| sapphire optical lens chemical formula | AL2O3 |
| Crystal structure | Hexagonal |
| Hardness Mohs | 9H |
| Compressvise strength | Gpa 2.0 |
| Density(20℃) | 3.98g/cm |
| Fusion point | 2040℃ |
| Boiling point | 2980℃ |
| Coefficient of Thermal Expansion | α=5.8×10 -6 /K |
| Specific heat | 0.418W.s/g/k |
| Thermal conduction | 25.12W/m/k(@100°C) |
| Optical transmission range | 0.17-5.5μm |
| Transmission(0.3~5um) | 85-88% |
| Refractive index | no=1.768nd |
| ne=1.76nd | |
| dn/dt | 13×10-6/K(@633nm) |
| Permittivity | 11.5(//c), 9.3(⊥c) |
How about advantage of sapphire glass?
1- Thinner and Stronger than Standard Glass Windows
2- Transmits Wavelengths Ranging From UV to Mid-Infrared
3- Features Extreme Surface Hardness and Chemical Resistance
-------------------------------------------------------------------------------------------------------------------
What applications arethese products for ?
LED OPtical element applications mobile camera cover glass
mechanical parts watch and other consumer electronics military applications
Fingerprint recognition allication SOS substrates Artificial jewelry
How about advantage of sapphire glass?
1- Thinner and Stronger than Standard Glass Windows
2- Transmits Wavelengths Ranging From UV to Mid-Infrared
3- Features Extreme Surface Hardness and Chemical Resistance
-------------------------------------------------------------------------------------------------------------------
Sapphire parts products in detail
4. We also can supply professional customized service in time and provide
cooperation and support of new product development and technology appliance
in other semiconductor crystal material products
Q:What is your minimum order requirement?
A:MOQ:3 piece
Q:How long will it take to execute my order and delivery it ?
A:confirm the order 1days After confirming the payment and delivery in 5days if on stocks.
Q:Can you give warranty of your products ?
A:We promise the quality, if the quality has any problems, we will produce new produces or return you money.
Q:How to pay?
A:T/T, Paypal, West Union, bank transfer.
Q:HOW about the freight ?
A:we can help you pay for the fee if you don’t have account,
if the order is over 10000usd, we can delivery by CIF.
Q:If you have any other questions,please do not hesitate to contact me.
A : connect with by skype/whatsapp :+86 158 0194 2596 or 2285873532@qq.com
we are at your side any time~~
