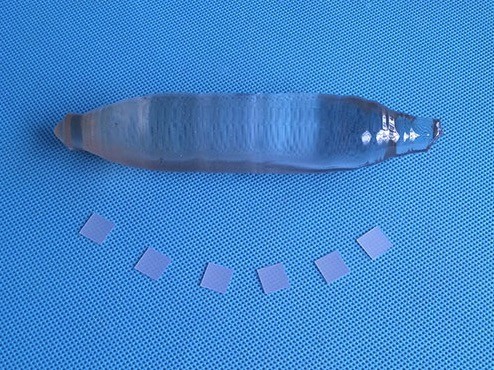

10X10mm/5x5*0.5mmt Single Crystal Chip Substrate Orientation KTaO3/YSZ/YAlO3

10X10mm/5x5*0.5mmt Single Crystal Chip Substrate Orientation KTaO3/YSZ/YAlO3

  • High Light

    magnesium oxide

    ,

    high temperature superconductors

  • Material
    KTaO3/YSZ/YAlO3 Single Crystal
  • Common Size
    10x10 20x20
  • Orientation
    <100><110><111>
  • Color
    Colorless
  • Common Thickness
    500um
  • Place of Origin
    china
  • Brand Name
    zmkj
  • Model Number
    KTaO3/YSZ/YAlO3 single crystal
  • Minimum Order Quantity
    10pcs
  • Price
    by case
  • Packaging Details
    single wafer package in 100-grade cleaning room
  • Delivery Time
    2-4weeks
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    1000pcs

10X10mm/5x5*0.5mmt Single Crystal Chip Substrate Orientation KTaO3/YSZ/YAlO3

10X10mm/5x5*0.5mmt <0001> orientation KTaO3/YSZ/YAlO3 single crystal substrate chip



Product Name: Zirconia (YSZ) crystal substrate
Product Description: Zirconium oxide (ZrO 2) to be incorporated into the ZrO 2 single crystal yttrium (Y) to stabilize its structure, generally the actual use of YSZ single crystal - adding yttrium stabilized zirconia crystal agent. It is mechanical, chemical stability, lower prices and thus can be widely applied.
Technical parameters:
Chemical formula (Zr, Y) O 2 with Zr: Y = 91:9
Crystal structure Cube
Lattice constant a = 5.125 Å
Density 5.8 g / cm3
Purity 99.99%
Mp 2800 o C
Thermal expansion coefficient 10.3 x10 -6 / o C
Permittivity 27
Crystal growth method Arc melting method
Specifications:

<100>, <110>, <111> Tolerance: +/-0.5 degrees

dia2 "x0.5mm, 10x10x0.5mm, 10x5x0.5mm

Single throw or double throw, Ra <5A

Note: according to customers' requirements and size of the corresponding direction.

Standard Packaging: 1000 clean room, 100 clean bag or single box packaging





Product Name: Potassium tantalum (KTaO3) crystal substrate
Technical parameters:
Weight 268.04
Crystal structure Cubic perovskite
Lattice constant a = 3.989Å
Growth method Top-seeded melt method
Mp ~ 1500 °C
Density 7.015g/cm3
Mohs hardness 6 Mohs
Thermal conductivity 0.17 w / mk @ 300k
Index of refraction 2.14
Specifications:

<100>, <110>, <111> Tolerance: + / -0.5 degrees

15x15x0.5mm, 10x10x0.5mm, 10x5x0.5mm

Single throw or double throw, Ra <5A

Note: according to customers' requirements and size of the corresponding direction.

Standard Packaging: 1000 clean room, 100 clean bags packaging



Specifications:

Growth method: hydrothermal method; Maximum size2inch(50.8)mm; Note: You can also customize according to customer demand special orientation and size.

Standard Packaging:1000 clean room, 100 clean bag or single box packaging





Application:

Potassium phthalate (KTaO3, KT for short) single crystal has a stable cubic structure and can be used to fabricate laser modulators, digital deflectors and semiconductor devices. Since the crystal has no phase transition from absolute zero to its melting point (1645K) And its unit cell parameters are well matched with bismuth copper oxide superconductors, and can be used as a substrate material for superconductor films.
