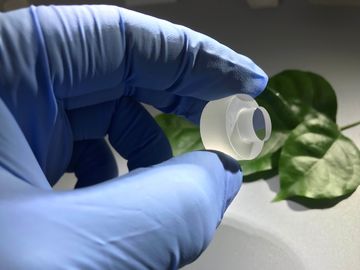

Vacuum Equipment Sapphire Crystal Glass , Sapphire Lens High Temperature
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | zmkj |
| Model Number: | sapphire step lens |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | by case |
| Packaging Details: | packed in Capacitor paper +Sponge paper+paper case |
| Delivery Time: | 1-3weeks |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50000pcs per month |
|
Detail Information |
|||
| Material: | Sapphire Optical Grade | Orientation: | C-axis |
|---|---|---|---|
| Surface S/D: | Polished | Tolerance: | ±0.03mm |
| Application: | Rolling Bearing Components | Grade: | Optical Grade Without Bubble;color |
| Hardness: | 9.0 | Advantage: | High Temperature Resistance |
| High Light: | sapphire lens,sapphire parts |
||
Product Description

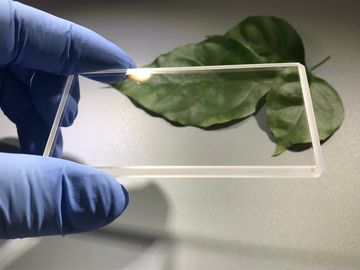

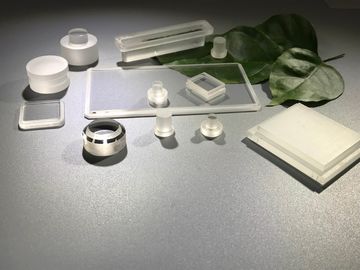

hardness 9.0 sapphire bearing for rolling bearing components/prolate ellipse/plano/Round Sapphire optical glass window sector sapphire glass/ sapphire window/sapphire optical plate for vacuum equipment watch window
Welcome to Know Sapphire~~
Synthetic sapphire is transparent single crystal 99.99% pure Al2O3 that exhibits a unique combination of physical, chemical, electrical and optical properties: high thermal conductivity, high strength and scratch resistance, hardness (9 on the Mohs scale), transparent in wide range of wavelength, chemical inertness.
High crystal perfection, low reactivity, and appropriate unit cell size make sapphire an excellent substrate in the semiconductor industry for blue light-emitting diodes (LED).
Since Nobel Laureate in Physics Shuji Nakamura used the sapphire substrate in 1990s for LED, the demand of sapphire crystal has been growing rapidly.
It drives development of new markets like general lighting, backside lighting in TV-sets, displays, consumer appliances, aerospace and defense, and other applications
Sapphire physical property
- A sapphire optical window is the ideal window material for many UV and IR applications because it can transmit so far into the UV and IR bands. With its thermal and chemical robustness, a sapphire window can be exposed to extreme plasmas and temperatures, far greater than any other material, and continue to transmit high powered UV, visible and IR for years with no degradation. These properties make it an ideal material for UV/VIS/IR sensors, IR surveillance and recon and broad band inspection equipment (especially when abradants are involved).
- Sapphire windows are the ideal material for pyrometry. They transmit a wide range of wavelengths while safely isolating hot zones up to 2000C from external room temperature observation; making sapphire windows the ideal sight window for furnaces and high temperature processing equipment.
- Medical and dental tools that require UV sterilization and curing and IR thermal processing are typical applications where sapphire windows and transparent tools excel.
| Available orientations: | C-axis [0001], R-axis [1-102], A-axis [11-20], M-axis [10-10], Random |
| Sapphire windows / blanks | |
| Diameter / Width: | 25.0 - 250.0 mm |
| Tolerance: | Standard ± 2°, Special to ± 0.1° |
| Thickness: | Minimum 0.15, maximum 120.0 mm |
| Surface finish: | As cut, fine ground, lapped, polished s/d 80/50, 60/40, 40/20, 20/10, 10/5, according to the MIL-0-13830A |
| Ends / Edge quality: | Fine ground, 80/50 |
| "As-grown" sapphire tubes: | |
| Dimensions | Up to 50 mm inner diameter, 0,5 - 4,0 mm wall thickness, 300-600 mm tubes length |
| Orientation | C-axis in the length of the tube |
| Polished sapphire tubes: | Up to 50 mm inside diameter, 0,5 - 3,0 mm wall thickness, 80-350 mm tubes length |
| Ingots: | Diameter/Width 5-220 mm, Thickness/Length 25 – 125 mm |
| Surface quality | As-cut, Ends/Edge Quality Diamond cut |
Sapphire Processing
Sapphire body→Slicing→Edge Chamfering→Lapping→Annealing→Polishing→Inspection→Cleaning&Packing
Our Related Products
sapphire optical dome sapphire substrates
SiC Crystal InP crystal
- We can fabricate the sapphire glass from rough material plate to polished window
- We have the very Fast delivery capacity within 15days by Customized size
- In addition,we Support { ONE WEEK REFUND MONEY} if not qualified.

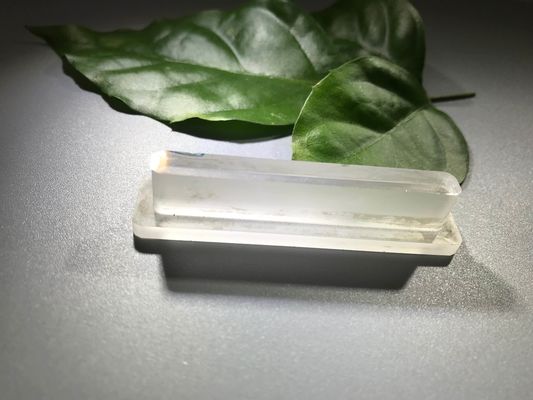

- We also can make substrates, wafers, rods,Bump join; Lens with step＆hole
FAQ:
Q: What's the way of shipping and cost?
A:(1) We accept DHL, Fedex, EMS etc.
(2) If you have your own express account, it's great.If not,we could help you ship them.
Freight is in accordance with the actual settlement.
Q: How to pay?
A: 100％T/T, Paypal, Secure payment and Assurance payment.
Q: What's your MOQ?
A: (1) For inventory, the MOQ is 2pcs.
(2) For customized products, the MOQ is 25pcs up.
Packing ＆ Delivery
| Packaging | products →customzied plastic box |
| Inner packing → Foam plastics anti-vibration cushion liner for package | |
| Outer packing → five layers corrugated carton paper box or as required | |
| Shipping | by air → UPS , DHL , Fedex , TNT, EMS ,SF ,etc |
Q:If you have any other questions,please do not hesitate to contact me.
A:Tel+:86-15801942596 or skype:wmqeric@sina.cn
