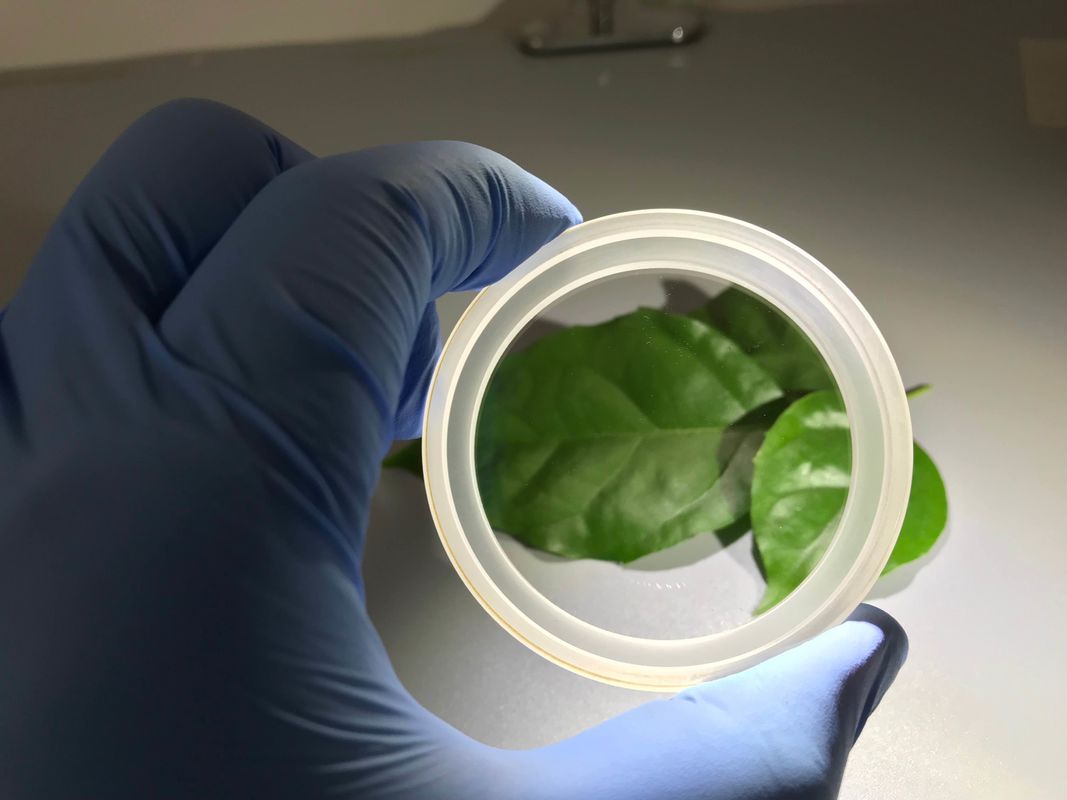

Customized Shape Sapphire Components Optical Step Lens Polished Surface For Vacuum Equipment

Customized Shape Sapphire Components Optical Step Lens Polished Surface For Vacuum Equipment

Product Details:

Place of Origin: CHINA
Brand Name: zmkj
Model Number: sapphire step lens

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: by case
Packaging Details: packed in Capacitor paper +Sponge paper+paper case
Delivery Time: 1-3weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 50000pcs per month
Get Best Price Contact Now

Detail Information

Material: Sapphire Optical Grade Orientation: C-axis
Surface S/D: Polished Tolerance: ±0.03mm
Application: Rolling Bearing Components Grade: Optical Grade Without Bubble;color
Hardness: 9.0 Advantage: High Temperature Resistance
High Light:

sapphire lens

,

sapphire parts

Product Description


 hardness 9.0 sapphire bearing for rolling bearing components/prolate ellipse/plano/Round Sapphire optical glass window sector sapphire glass/ sapphire window/sapphire optical plate for vacuum equipment watch window

Welcome to Know Sapphire~~

Synthetic sapphire is transparent single crystal 99.99% pure Al2O3 that exhibits a unique combination of physical, chemical, electrical and optical properties: high thermal conductivity, high strength and scratch resistance, hardness (9 on the Mohs scale), transparent in wide range of wavelength, chemical inertness.
High crystal perfection, low reactivity, and appropriate unit cell size make sapphire an excellent substrate in the semiconductor industry for blue light-emitting diodes (LED).
Since Nobel Laureate in Physics Shuji Nakamura used the sapphire substrate in 1990s for LED, the demand of sapphire crystal has been growing rapidly.

It drives development of new markets like general lighting, backside lighting in TV-sets, displays, consumer appliances, aerospace and defense, and other applications





Sapphire physical propertyCustomized Shape Sapphire Components Optical Step Lens Polished Surface For Vacuum Equipment 0

  1. A sapphire optical window is the ideal window material for many UV and IR applications because it can transmit so far into the UV and IR bands. With its thermal and chemical robustness, a sapphire window can be exposed to extreme plasmas and temperatures, far greater than any other material, and continue to transmit high powered UV, visible and IR for years with no degradation. These properties make it an ideal material for UV/VIS/IR sensors, IR surveillance and recon and broad band inspection equipment (especially when abradants are involved).
  2. Sapphire windows are the ideal material for pyrometry. They transmit a wide range of wavelengths while safely isolating hot zones up to 2000C from external room temperature observation; making sapphire windows the ideal sight window for furnaces and high temperature processing equipment.
  3. Medical and dental tools that require UV sterilization and curing and IR thermal processing are typical applications where sapphire windows and transparent tools excel.




Sapphire Processing

Sapphire body→Slicing→Edge Chamfering→Lapping→Annealing→Polishing→Inspection→Cleaning&Packing



Customized Shape Sapphire Components Optical Step Lens Polished Surface For Vacuum Equipment 1



Rough & Polished windows  process  capacity


Production Name
plano concave lens
Material
optical glass
Surface Quality
60/40,40/20,20/10,
Dimention Tolerance
+/-0.01
Diameter
dia1~400mm/Customer request
clear aperture
>98%
 thickness
1-200mm
color
transparent
coating
antireflection /Customer request
Application
optical equipment



Customized Shape Sapphire Components Optical Step Lens Polished Surface For Vacuum Equipment 2Customized Shape Sapphire Components Optical Step Lens Polished Surface For Vacuum Equipment 3Customized Shape Sapphire Components Optical Step Lens Polished Surface For Vacuum Equipment 4



Customized Shape Sapphire Components Optical Step Lens Polished Surface For Vacuum Equipment 5Customized Shape Sapphire Components Optical Step Lens Polished Surface For Vacuum Equipment 6

Our  Related Products



         sapphire  optical lens                                             sapphire substrates

Customized Shape Sapphire Components Optical Step Lens Polished Surface For Vacuum Equipment 7Customized Shape Sapphire Components Optical Step Lens Polished Surface For Vacuum Equipment 8

          SiC     Crystal                                                                 GaP  crystal

Customized Shape Sapphire Components Optical Step Lens Polished Surface For Vacuum Equipment 9Customized Shape Sapphire Components Optical Step Lens Polished Surface For Vacuum Equipment 10

  1. We can fabricate the sapphire glass from rough material plate to polished window
  2. We have the very Fast delivery capacity within 15days by Customized size
  3. In addition,we Support  { ONE WEEK REFUND MONEY} if not qualified.
  4. We also can make substrates, wafers, rods,Bump join; Lens with step&hole
