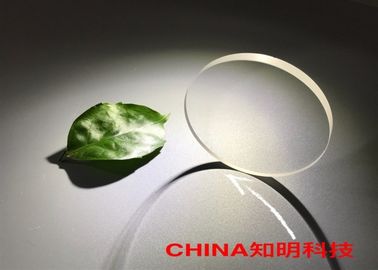

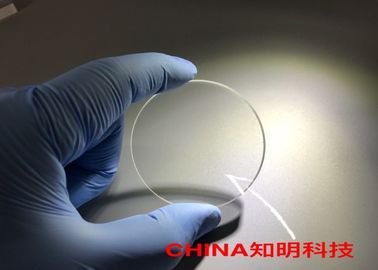

Dia60*5mm Sapphire Optical Windows Round For Vacuum Equipment Smartphone
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | zmkj |
| Model Number: | dia60x5mmt |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | by case |
| Packaging Details: | packed in Capacitor paper +Sponge paper+paper case |
| Delivery Time: | 1-3weeks |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500-5000pcs per month |
|
Detail Information |
|||
| Material: | Sapphire Optical Grade | Orientation: | C-axis |
|---|---|---|---|
| Surface S/D: | 40/20 | Tolerance: | ±0.03mm |
| Application: | Vacuum Equipment Window | Grade: | Optical Grade Without Bubble;color |
| Transmittance: | ＞70％ At 200nm | ||
| High Light: | sapphire glass window,sapphire crystal glass |
||
Product Description
Round Sapphire optical glass window sector sapphire glass/ sapphire window/sapphire optical plate for vacuum equipment watch window
SAPPHIRE IS HIGHLY ROBUST AT EXTREME TEMPERATURES:
|
SAPPHIRE WINDOWS TRANSMIT LIGHT FROM BELOW 190NM TO OVER 5 MICRONS:
- A sapphire optical window is the ideal window material for many UV and IR applications because it can transmit so far into the UV and IR bands. With its thermal and chemical robustness, a sapphire window can be exposed to extreme plasmas and temperatures, far greater than any other material, and continue to transmit high powered UV, visible and IR for years with no degradation. These properties make it an ideal material for UV/VIS/IR sensors, IR surveillance and recon and broad band inspection equipment (especially when abradants are involved).
- Sapphire windows are the ideal material for pyrometry. They transmit a wide range of wavelengths while safely isolating hot zones up to 2000C from external room temperature observation; making sapphire windows the ideal sight window for furnaces and high temperature processing equipment.
- Medical and dental tools that require UV sterilization and curing and IR thermal processing are typical applications where sapphire windows and transparent tools excel.
Application of synthetic sapphire:
- Substrates for LED manufacturing
- Viewports for vacuum/high temperature/pressure chamber of furnaces, semiconductor equipment etc.
- Watch glasses
- Windows for bar code reader
- Phone, smartphone, smart watch cover screens
- Polarized windows for LCD projectors
- Xenon lamp windows
- Components for infrared optics
- Thermocouples protection
- NMR tubes
- Tubes for plasma etching process in semiconductor industry
- HPLH pistons
- Light guide for thermometry
- Dosing and filling pumps in pharmaceutical, cosmetic and food industries.
- Medical implants
- Endoscope lenses
- other:ole and drilling vision system optics, inspection windows, and gun sights.
- Components for infrared optics
- Thermocouples protection
- other:ole and drilling vision system optics, inspection windows, and gun sights.
Sapphire Processing
Sapphire body→Slicing→Edge Chamfering→Lapping→Annealing→Polishing→Inspection→Cleaning&Packing
Rough ＆ Polished windows process capacity
Size tolerances: ±0.03mm, thickness±0.01mm, Ra＜0.3nm,
Orientation: A-aixs, R-axis, C-axis,M-axis or other customized angle.
Surface quality: 80/60 S/D; 60/40 S/D; 40/20 S/D
size:dia1mm~400x400mml
Our Related Products
LiTaO3 ingot Colored Sapphire
SiC Substrates MgO crystal
- We can fabricate the sapphire glass from rough material plate to polished window
- We have the very Fast delivery capacity within 15days by Customized size
- In addition,we Support { ONE WEEK REFUND MONEY} if not qualified.
- We also can make substrates, wafers, rods,Bump join; Lens with step＆hole
About Our Company ＆ Factory
ZMKJ has been fabricating micro to large sapphire windows, sight glasses and flats for over 10 years. Although sapphire is often more costly than glass and other transparent materials, its exceptional properties can ultimately save money and reduce critical down time, often eliminating the need for PM periodic replacements.
We are also specialize in providing a varity of materials wafers, substrates, components, products are widely used in electronics, optics, optoelectronics and many other fields. We've been working closely with many domestic and oversea universities, research institutions and companies, provide customized products and services for their R&D projects.
It's our vision to explore and develope cutting edge application of new materials with customers together.
Q: What is your minimum order requirement?
A: MOQ:1 piece
Q: How long will it take to execute my order ?
A: After confirming the payment.
Q: Can you give warranty of your products ?
A: We promise the quality, if the quality has any problems, we will produce new produces or return you money.
Q: How to pay?
A: T/T, Paypal, West Union, bank transfer and or Assurance payment on Alibaba and etc.
Q: Can you produce custom optics?
A: Yes, we can produce custom optics
