Aspherical Dome Sapphire Optical Windows Dia150mm With Hole Tolerance ±0.1mm

Aspherical Dome Sapphire Optical Windows Dia150mm With Hole Tolerance ±0.1mm

  • High Light

    sapphire glass window

    ,

    sapphire crystal glass

  • Material
    Sapphire Optical Grade
  • Orientation
    C-axis A-axis M-axis
  • Surface S/D
    Lapped
  • Tolerance
    ±0.1mm
  • Application
    For Aspherical Dome
  • Grade
    Optical Grade Without Bubble;color
  • Size
    168x103x105mmt
  • Place of Origin
    CHINA
  • Brand Name
    zmkj
  • Model Number
    dia150mmxdia30x thickness10mmt
  • Minimum Order Quantity
    1pcs
  • Price
    2200usd/pcs
  • Packaging Details
    packed in Capacitor paper +Sponge paper+paper case
  • Delivery Time
    1-3weeks
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    100-500pcs per month

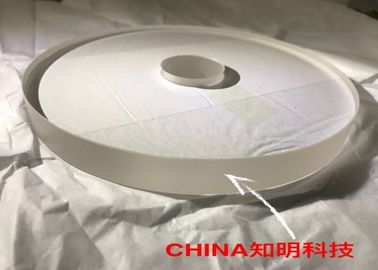

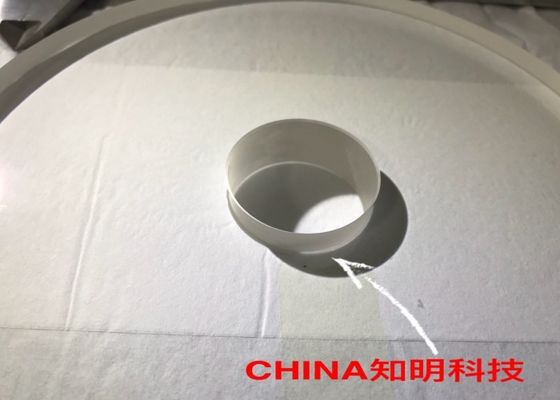

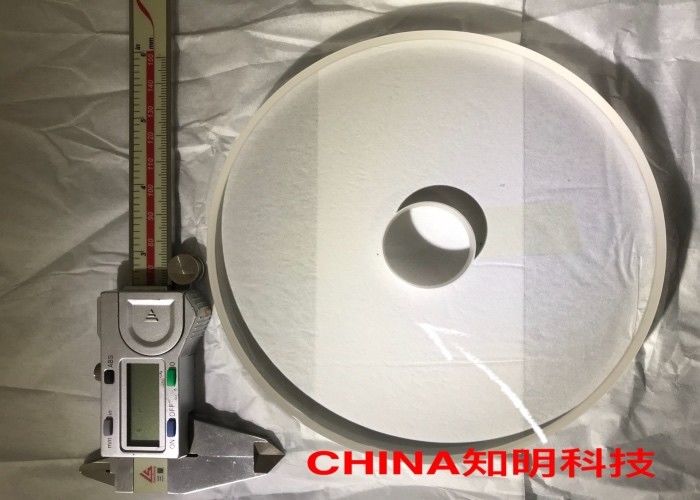

Aspherical Dome Sapphire Optical Windows Dia150mm With Hole Tolerance ±0.1mm

Square  cube sapphire optical glass for Protective window /sapphire cube blocks / sapphire Aspherical dome/customized rough sapphire optical cube blocks for optical spherical cover

WHY ARE SAPPHIRE OPTICS & SAPPHIRE MECHANICAL PARTS SUCH HIGH PERFORMERS?  Aspherical Dome Sapphire Optical Windows Dia150mm With Hole Tolerance ±0.1mm 0

SAPPHIRE LENSES, BALLS & PRISMS ARE INCREDIBLY HARD, STRONG & WEAR RESISTANT:

  1. Sapphire lenses and sapphire prisms can take pressure like no other clear material, making sapphire optics the go-to transparent material for highpressure vessels, deep sea windows and sight glasses. Combined with the exceptional thermal and chemical performance of sapphire, a sapphire lens is the ideal transparency for pressurized in-process, deep sea and equipment sensors.
  2. A sapphire lens can be exposed to extreme abradants such as sand and particulates with minimal effect on the clarity of the optics. This makes sapphire optics the ideal material for a variety of applications such as: aerospace lenses, downhole and drilling vision system optics, inspection windows, watch crystals and gun sights.

Application of synthetic sapphire:

  • Substrates for LED manufacturing
  • Viewports for vacuum/high temperature/pressure chamber of furnaces, semiconductor equipment etc.
  • Watch glasses
  • Windows for bar code reader
  • Phone, smartphone, smart watch cover screens
  • Polarized windows for LCD projectors
  • Xenon lamp windows
  • Components for infrared optics
  • Thermocouples protection
  • NMR tubes
  • Tubes for plasma etching process in semiconductor industry
  • HPLH pistons
  • Light guide for thermometry
  • Dosing and filling pumps in pharmaceutical, cosmetic and food industries.
  • Medical implants
  • Endoscope lenses



Rough Sapphire Blocks Specifications ( Kyropulos):



Size:length 168mm±0.1mm,width 105mm, Thickness:103mm,

Orientation: 168X105MM,C-axis ±1°, 105x103mm Surface is A-axis,

Capacity:dia0.3~~400x400mm (A-axis or C axis )

Surface:  Lapped or AS-cut

Orientation: A/R/C/M-axis OK

Aspherical Dome Sapphire Optical Windows Dia150mm With Hole Tolerance ±0.1mm 1Aspherical Dome Sapphire Optical Windows Dia150mm With Hole Tolerance ±0.1mm 2

Polished windows ( Kyropulos)

Size tolerances: ±0.03mm, thickness±0.01mm, Ra<0.3nm,Surface quality: 80/60 S/D; 60/40 S/D; 40/20 S/D





Our Products

  • We can fabricate the sapphire glass from rough material plate to polished window
  • We have the very Fast delivery capacity within 15days by Customized size
  • In addition,we Support  { ONE WEEK REFUND MONEY} if not qualified.
  • We also can make substrates, wafers, rods,Bump join; Lens with step&hole

Sapphire Produce Step

Aspherical Dome Sapphire Optical Windows Dia150mm With Hole Tolerance ±0.1mm 3





Packing and Delivery-
Aspherical Dome Sapphire Optical Windows Dia150mm With Hole Tolerance ±0.1mm 4Aspherical Dome Sapphire Optical Windows Dia150mm With Hole Tolerance ±0.1mm 5

FAQ

Q: Are you trading company or manufacturer ?

A: We have a factory.

Q: Do you provide samples ? is it free or extra ?

A: we could offer the sample for charge by MOQ 1PCS if we have it in store.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>1000USD, 50% T/T in advance ,balance before shippment.





OUR SERVICE
1. We will use protective plastic and customized boxed to pack.(Enviroment friendly material)
2. We could do customized packing according to the quantity.
3. DHL/Fedex/UPS Express usually takes about 3-7working days to the destination.
4. We are service for you all time after trade
