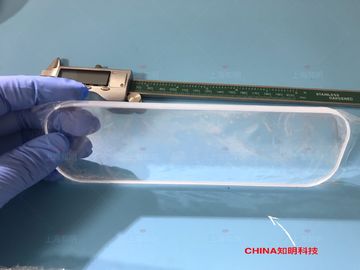

Industrial Sapphire Optical Windows Customized Plano Rectangle 193x60x7mmt
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | zmkj |
| Model Number: | 193x60x7mmt |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3pcs |
|---|---|
| Price: | USD220-300usd/pcs by FOB |
| Packaging Details: | packed in Capacitor paper +Sponge paper+paper case |
| Delivery Time: | 1-3weeks |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500pcs per month |
|
Detail Information |
|||
| Material: | Sapphire Optical | Orientation: | C-axis |
|---|---|---|---|
| Surface S/D: | Double Side Polisehd 60/40 | Tolerance: | ±0.1mm |
| Application: | For Device Viewing Window | Grade: | Optical Grade Without Bubble;color |
| Highlight: | optical window glass,sapphire crystal glass |
||
Product Description

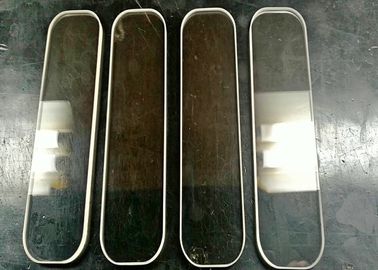

Plano sapphire device viewing window by customized rectangle 193x60x7mmt sapphire window lens ＆Sapphire optical Windows Manufacturers.
Optical windows are applied for protecting fragile optical components inside an equipment or directly used for watching windows because of its very good physical property.
they are adopted to isolate two physical environments while allowing light to pass. Optical Sapphire windows refer to a piece of transparent optical material that allows light into an optical instrument. They are pieces of optical glasses with ground and polished faces that are relatively parallel.
Optical Sapphire window Specifications:
| Structure | Square plano lens |
| Substrate Material | Glass Sapphire |
| Diameters ＆Thickness Available | 1 mm to 400mm for Diameter ,0.08-300mm for Thickness |
| DiameterTolerance | +0.00/-0.10 mm |
| Surface Quality | 60-40 Scratch-Dig(general) 10-5 to 80-50 is available |
| Surface Flatness | 1/4 lambda to 3lambda |
| Surface Irregularity (Peak to Valley) |
commonly 1-3λ |
| Thickness tolerance | +/-0.1mm or better |
| Focal length tolerance | +/-1% |
| Clear Aperture | >90% of Diameter |
| Chamfer | 0.05-0.5mmx45degree,according to customer’s needs. |
| Centration | 3 arc min |
| Coating |
AR,Mgf2 is on request,R<0.25% |
application
Sapphire optical windows are widely used in various applications due to their exceptional mechanical strength, thermal stability, and excellent transmission in a wide range of wavelengths. One key application is in high-pressure environments, such as in underwater exploration vehicles or aerospace instruments, where these windows serve as protective barriers for sensitive optical components. Their durability makes them ideal for environments where extreme conditions like high pressure, temperature variations, and corrosive substances could otherwise damage regular optical materials.
In addition to protection, sapphire optical windows are also used in medical and scientific instruments. For example, in high-precision laser systems or spectrometers, these windows allow precise light transmission without introducing optical distortion, while protecting internal components from contamination or mechanical damage. Their superior hardness and scratch resistance also make them suitable for applications where the window may be exposed to abrasive materials or rough handling.
Moreover, sapphire’s resistance to thermal shock makes it an excellent choice for use in high-temperature industrial processes, where they maintain their integrity and performance even under intense heat. Overall, sapphire optical windows provide a combination of durability, clarity, and thermal stability, making them versatile in a wide array of demanding applications.
- We will fabricate as the drawings and requirements rigorously.
- We have the very Fast delivery capacity within 15days by Customized size
- In addition,we Support { ONE WEEK REFUND MONEY} if not qualified.

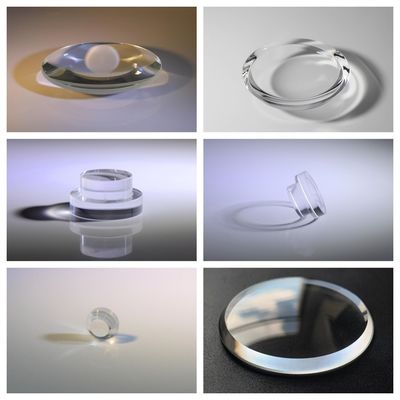

- We also can make substrates, wafers, rods,Bump join; Lens with step＆hole
Packing and Delivery-
1. We will use protective plastic and customized boxed to pack.(Enviroment friendly material)
2. We could do customized packing according to the quantity.
3. DHL/Fedex/UPS Express usually takes about 3-7working days to the destination.
