|Material:||Al2o3 Single Crystal||Doped:||Cr3+|
|Color:||Red #3-#5||Size:||Diameter 1~120mm|
|Growth Method:||KY||Application:||Laser Device|

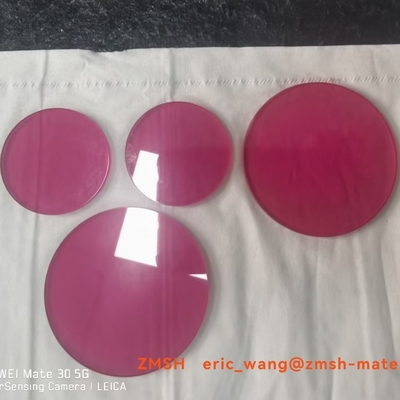

Cr3+ doping ruby sapphire crystal for watch glass optical winows laser OR
Highly frequency Ti+ doped (Titanium doped)sapphire single crstal used in laser/Ti Al2O3 Crystal for laser machine,Titanium doped Sapphire,color sapphire crystal glass lens,s,Ruby optical glass,Titanium sapphire optical lens,Titanium sapphire laser crystals,ruby glass ball
It is similar with Ti+ doping sapphire crystal.
Ti: sapphire (Titanium doped Sapphire, Al2O3:Ti3+) is used for making ultra-short pulse solid-state or wavelength tunable lasers. Ti:sapphire lasers are also very convenient e.g. for pumping test setups of new solid-state lasers (e.g. based on neodymium or ytterbium-doped gain media), since they can easily be tuned to the required pump wavelength and allow one to work with very high pump brightness due to their good beam quality and high output power of typically several watts.
Scitlion is able to offer
Ti2O3 dopand concentration from 0.06% to 0.26% (atm%)
Rod diameter from 2mm to 100mm
Length from 0.1mm to 100mm
Coating upon your request
|Ø Best materials for ultrashort pulse generation|
|Ø Tunable range from 600-1100nm|
|Ø High gain|
|Ø Could be pumped by short pulse flash lamps|
|Ø Good physical and optical properties|
|Polishing Specification for Laser Grade|
|Thickness/Diameter Tolerance||±0.05 mm|
|Maximum dimensions||dia 120mm|
|Nd Concentration tolerance (wt%)||0.05-0.35wt% Ti2O3|
A-Axis within 5°
E-vector parallel to C-Axis
|End Configuration||flat/flat or Brewster/Brewster ends|
|Figure of Merit||100~300|
|Coatings||Standard coating is BBAR with R < 5.0% each face at 532 nm and R < 0.5% each face, 650 nm to 850 nm. Other coatings available|
Q1: Can I have samples to test?
A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available.
Q2: Do you have any MOQ limited? A: Our MOQ: 3pcs Q3: What’s the lead time?
A: Sample :2-7 days.Mass production: 15-20 days.
Q4:How do you ship the goods and how long does it take?
A: We usually ship goods by UPS,FEDEX,TNT. It usually takes 3-5 days to arrive.
Q5: Do you offer guarantee for your products?
A: After test them if not pass test,you can return the goods at any time, we will re-offer you again and also bear shipping fee.
Q6: Do you accept OEM?
A: We have our own brand-metalaser. OEM is also acceptable.
