4Inch Prime Grade DSP SSP 0.5mm Al2O3 Led Sapphire Substrate sapphire wafers

4Inch Prime Grade DSP SSP 0.5mm Al2O3 Led Sapphire Substrate sapphire wafers

Product Details:

Place of Origin: CHINA
Brand Name: ZMKJ
Model Number: 4inch sapphire

Payment & Shipping Terms:

Minimum Order Quantity: 25pcs
Price: usd20/pcs

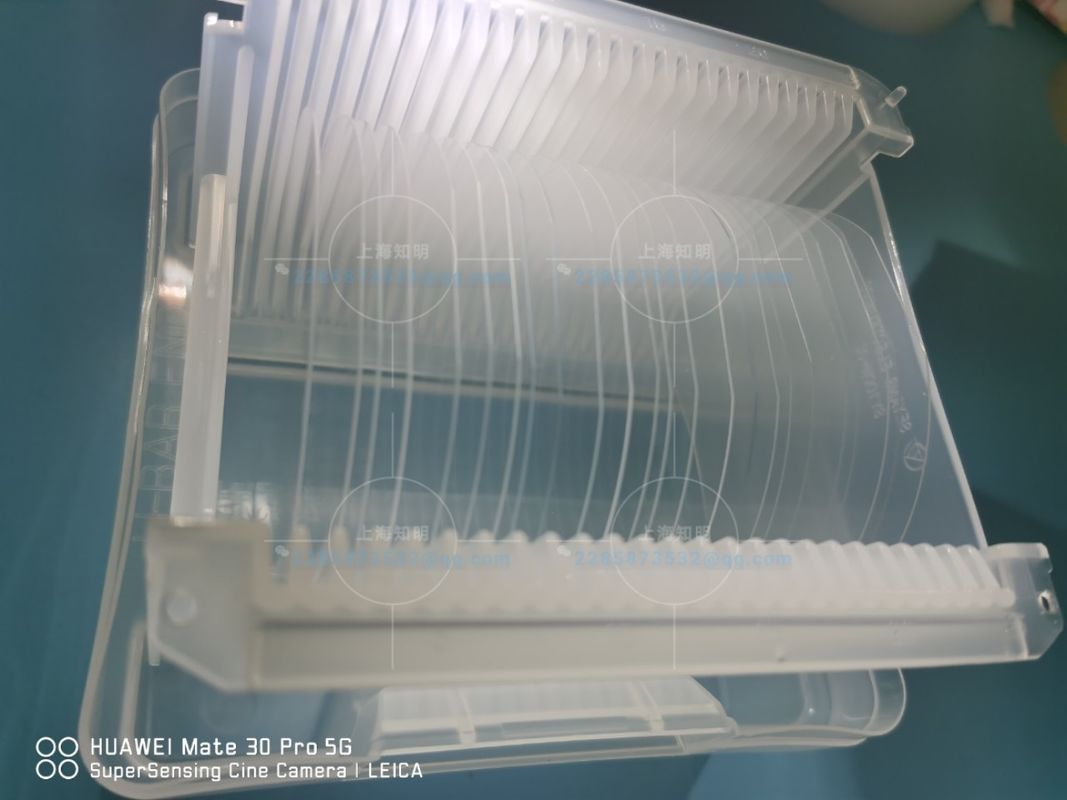

Packaging Details: 25pcs cassettle wafer case in 100 grade cleaning bag
Delivery Time: in stocks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per month
Get Best Price Contact Now

Detail Information

Material: Sapphire Substrate Orientation: C-AXIS
Thickness: 0.5mm(other Thickness Ok) Surface: DSP
TTV: <10um BOW: <10um
Warp: <10um Package: 100 Grade Cleaning Room By Vacuum Package
Customize: Acceptable Thickness Tolerannce: ±15um
Application: Epitaxial Shape: Round Shape
High Light:

Al2O3 led sapphire substrate

,

0.5mm led sapphire substrate

,

Al2O3 patterned sapphire substrate

Product Description

 C-axis (0001) orientation 12inch diameter 300mm with notch DSP Sapphire Substrate wafers thickness 1.5mm C-a

4inch dia100mm prime grade DSP/SSP 0.5mm thickness Al2O3 Sapphire wafers


TYPICAL CHOICES FOR PART ORIENTATION:


Why Sapphire?

  • Zero Degree: The direction of view is parallel to the optical axis of the crystal

  •

  • 90 Degree: The direction of view is perpendicular to the optical axis of the crystal

  • C-Axis: In a rod, the direction along its length. In a window, the direction perpendicular to the face.

  • M-Plane: The plane containing the optic axis (C) and inclined 30 degrees to the A-axis

  • A-Plane: The plane that is perpendicular to the A-axis, containing the C-axis

  • R-Plane: A plane inclined 57.5667 degrees to the optic axis in the same zone as the M-plane.

  • Random: There is no specified relationship between the part and the crystalline orientation. The part is manufactured without concern about orientation.

  •

    Application
    Sapphire wafer and substrate applications include:
    Microelectronic IC applications
    SOS Silicon-on-Sapphire
    The growth of superconducting compounds / Gallium Nitride
    Infrared detectors
    Hybrid microelectronics
    Polishing carriers
    Hostile environment
    Optical transmission from ultraviolet to near infrared
    High temperature
    Radiation resistance



    Product Name
    Sapphire Ingot
    Sapphire Wafer
    Sapphire Crystal
    Precision Sapphire Rod
    Sapphire Substrate and Wafer
    Sapphire Prism
    Sapphire Screen Cover
    Sapphire Optical Window
    Sapphire Window
    Sapphire Lenses
  • Product Description



    Product Name
    2-10" 4inch  C-Plane  Sapphire Glass Wafer
    Material
    Sapphire
    Diameter
    4inch dia100mm
    Diameter Tolerance
    +-0.1mm
    Thickness
    500±25um
    Shape
    with of length
    Surface
    DSP/SSP
    Flatness
    >L/4
    Surface Quality
    20/10
    Bevel
    yes
    Coating
    uncoated
General  Other Size Sheet   on stocks

 Standard wafer
2 inch C-plane sapphire wafer SSP/DSP
3 inch C-plane sapphire wafer SSP/DSP
4 inch C-plane sapphire wafer SSP/DSP
6 inch C-plane sapphire wafer SSP/DSP
Special Orientation
A-plane (1120) sapphire wafer
R-plane (1102) sapphire wafer
M-plane (1010) sapphire wafer
C-axis with a 0.5°~ 10° offcut, toward A-axis or M-axis
Other customized orientation

Customized Size
10x10x0.5mm sapphire wafer
20x20x0.5mm sapphire wafer
Ultra thin (100um) 2inch sapphire wafer
8 inch sapphire wafer
Patterned Sapphire Substrate (PSS)
2 inch C-plane PSS
4 inch C-plane PSS





                       2inch

DSP C-AXIS 0.1mm/ 0.175mm/0.2mm/0.3mm/0.4mm/0.5mm/1.0mmt
SSP C-axis 0.2/0.43mm
(DSP&SSP) A-axis/M-axis/R-axis 0.43mm

                      3inch

DSP/ SSP C-axis 0.43mm/0.5mm

                     4Inch

dsp c-axis 0.4mm/ 0.5mm/1.0mm
ssp c-axis 0.5mm/0.65mm/1.0mmt

                      6inch

ssp c-axis 1.0mm/1.3mmm

dsp c-axis 0.65mm/ 0.8mm/1.0mmt



Products ddetail:

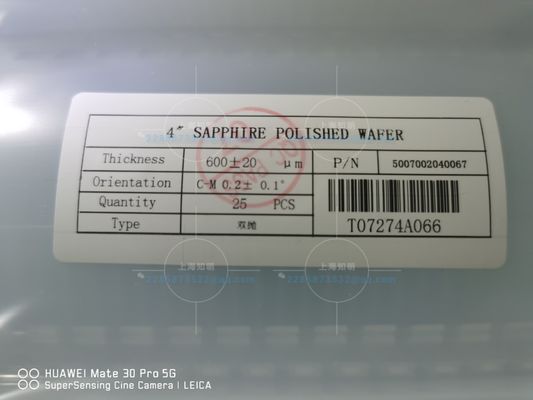

4Inch Prime Grade DSP SSP 0.5mm Al2O3 Led Sapphire Substrate sapphire wafers 04Inch Prime Grade DSP SSP 0.5mm Al2O3 Led Sapphire Substrate sapphire wafers 14Inch Prime Grade DSP SSP 0.5mm Al2O3 Led Sapphire Substrate sapphire wafers 24Inch Prime Grade DSP SSP 0.5mm Al2O3 Led Sapphire Substrate sapphire wafers 3
Other Related Products




FAQ



Q: What are your main products?

A: prime semiconductor wafer and Optical lens,mirrors,windows,filters,prisms



Q: How long is your delivery time?

A: In general delivery time is about one month for custom produced optics.except stock ones or some special optics.



Q: Do you provide samples ? is it free or extra ?

A: We can provide free samples if we have stock optics as your request,while custom produced samples are not free.



Q:What is your MOQ ?

MOQ is 25pcs for this wafers

Q: What is your terms of payment ?

T/T,L/C,VISA,Paypal,Alipay or Negotiation.


  Q: If you have any other questions,please do not hesitate to contact me.
      A : connect with by skype/whatsapp :+86 158 0194 2596 or 2285873532@qq.com
       we are at your side any time~~
