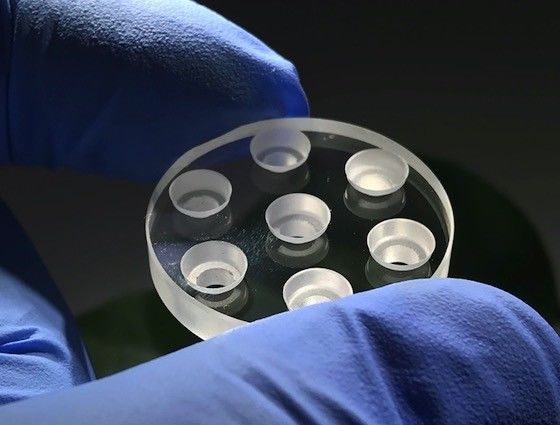

Round Sapphire Glass Lens Assembly Part With Sink Hole High Thermal Conductivity

Round Sapphire Glass Lens Assembly Part With Sink Hole High Thermal Conductivity

Product Details:

Place of Origin: CHINA
Brand Name: zmkj
Model Number: sink hole sapphire lens

Payment & Shipping Terms:

Minimum Order Quantity: 20pcs
Price: by case
Packaging Details: packed in Capacitor paper +Sponge paper+paper case
Delivery Time: 1-3weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 50000pcs per month
Get Best Price Contact Now

Detail Information

Material: Sapphire Optical Grade Orientation: C-axis
Surface S/D: Polished Tolerance: ±0.03mm
Application: Rolling Bearing Components Grade: Optical Grade Without Bubble;color
Hardness: 9.0 Advantage: Wear And Corrosion Resistance
High Light:

sapphire optics

,

sapphire lens

Product Description

 with Sink hole polished sapphire glass lens assembly part hardness 9.0


 hardness 9.0 sapphire bearing for rolling bearing components/prolate ellipse/plano/Round Sapphire optical glass window sector sapphire glass/ sapphire window/sapphire optical plate for vacuum equipment watch window

Welcome to Know Sapphire~~

Synthetic sapphire is transparent single crystal 99.99% pure Al2O3 that exhibits a unique combination of physical, chemical, electrical and optical properties: high thermal conductivity, high strength and scratch resistance, hardness (9 on the Mohs scale), transparent in wide range of wavelength, chemical inertness.
High crystal perfection, low reactivity, and appropriate unit cell size make sapphire an excellent substrate in the semiconductor industry for blue light-emitting diodes (LED).
Since Nobel Laureate in Physics Shuji Nakamura used the sapphire substrate in 1990s for LED, the demand of sapphire crystal has been growing rapidly.

It drives development of new markets like general lighting, backside lighting in TV-sets, displays, consumer appliances, aerospace and defense, and other applications





Sapphire physical property

  1. A sapphire optical window is the ideal window material for many UV and IR applications because it can transmit so far into the UV and IR bands. With its thermal and chemical robustness, a sapphire window can be exposed to extreme plasmas and temperatures, far greater than any other material, and continue to transmit high powered UV, visible and IR for years with no degradation. These properties make it an ideal material for UV/VIS/IR sensors, IR surveillance and recon and broad band inspection equipment (especially when abradants are involved).
  2. Sapphire windows are the ideal material for pyrometry. They transmit a wide range of wavelengths while safely isolating hot zones up to 2000C from external room temperature observation; making sapphire windows the ideal sight window for furnaces and high temperature processing equipment.
  3. Medical and dental tools that require UV sterilization and curing and IR thermal processing are typical applications where sapphire windows and transparent tools excel.




Sapphire Processing

Sapphire body→Slicing→Edge Chamfering→Lapping→Annealing→Polishing→Inspection→Cleaning&Packing







Rough & Polished windows  process  capacity


Production Name
plano concave lens
Material
optical glass
Surface Quality
60/40,40/20,20/10,
Dimention Tolerance
+/-0.01
Diameter
dia1~400mm/Customer request
clear aperture
>98%
 thickness
1-200mm
color
transparent
coating
antireflection /Customer request
Application
optical equipment



Round Sapphire Glass Lens Assembly Part With Sink Hole High Thermal Conductivity 0

Round Sapphire Glass Lens Assembly Part With Sink Hole High Thermal Conductivity 1





Our  Related Products



         sapphire  optical lens                                             color sapphire glass lens

Round Sapphire Glass Lens Assembly Part With Sink Hole High Thermal Conductivity 2Round Sapphire Glass Lens Assembly Part With Sink Hole High Thermal Conductivity 3

          SiC     Crystal                                                                 GaAs  crystal

Round Sapphire Glass Lens Assembly Part With Sink Hole High Thermal Conductivity 4Round Sapphire Glass Lens Assembly Part With Sink Hole High Thermal Conductivity 5

  1. We can fabricate the sapphire glass from rough material plate to polished window
  2. We have the very Fast delivery capacity within 15days by Customized size
  3. In addition,we Support  { ONE WEEK REFUND MONEY} if not qualified.
  4. We also can make substrates, wafers, rods,Bump join; Lens with step&hole

FAQ & CONTACT



Q: What is your minimum order requirement?
A: MOQ:1 piece

Q: How long will it take to execute my order ?
A: After confirming the payment.

Q: Can you give warranty of your products ?
A: We promise the quality, if the quality has any problems, we will produce new produces or return you money.

Q: How to pay?
A: T/T, Paypal, West Union, bank transfer and  or Assurance payment on Alibaba and etc.

Q: Can you produce custom optics?
A: Yes, we can produce custom optics
Q: If you have any other questions,please do not hesitate to contact me.
A: Tel+:86-15801942596 or skype:wmqeric@sina.cn
