Product Details:

Place of Origin: china
Brand Name: zmkj
Model Number: Teo2 wafer10x10

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: by case
Packaging Details: single wafer bag under 1000 cleaning room
Delivery Time: 2-4weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000pcs
Get Best Price Contact Now

Detail Information

Material: TeO2 Crystal Wafers Size: 10x10x0.5mmt
Orientation: 001 Or 110 Purity: 99.99%
Application: Switching In Telecom Fibers, Laser And Research Product Name: Crystal Wafer Substrate TeO2
High Light:

magnesium oxide

,

wafer substrate

Product Description

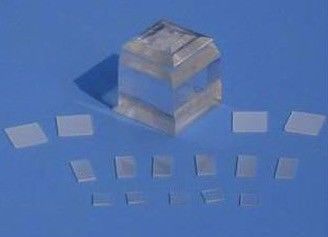

10x10mmt/Tellurium oxide (TeO2) crystals crystal substrate TeO2 wafer


TeO2 Crystal & Q Switch


TeO2 is an excellent ascousto-optic (AO) crystal with high AO figure of merit,
birefringence, good optical rotation and slow propagation velocity along
[110] direction. The resolution of AO devices made of TeO2 crystals will increase
several levels than others. It is an ideal single crystal material for preparation of
AO rotators, modulators, resonators, tuning filters and other AO devices.
The TeO2 crystal can be used in the field of astronomy, laser publishing, laser recorder and so on.The application filed of TeO2 crystal
is huge. We can provide TeO2 crystal at size of 120 X 80 X 40mm3 on all direction,
as well as cylinder or cuboid shape single crystals





Physica Properties

Crystal Structure
Tetragonal
Point Group
422
Lattice Parameter )nm)
a 0.4810
c 0.7613
Density
5.99 g/cm3
Melting Point
730℃
Mohs Hardness
4.5
Transparency Range (nm)
350 ~ 500
Gradient of Refractive Index(?0-15)/cm
≤ 5
Refractive Index
no = 2.260
n3 = 2.142
Transmittivity
70%@632.8nm
Phase Velocity (m/s)
616
Photo-elastic Coefficient
P11=0.074 P13=0.340 P31=0.091 P33=0.240
Figure of Merit( ?0-18S3)/g
M2 793

sound velocitykm/sec) 0.617 for shear wave along <110>
4.26 for longitudinal wave along <001>
Sound and light quality factors       (10-18 sec3/g) 1200 for shear mode along <110>
34.5for longitudinal mode along <001>








Introduction

An AOM usual chooses the deflected beam as the one that is used in the optical system because it can be switched on and off with high extinction ratio and the intensity can be varied from zero to more than 85% of the incident beam.
Principal applications for AOMs are pre-press, laser imaging and displays, switching in telecom fibers, laser and research.
10x10 mmt Tellurium Oxide TeO2 Crystals , Crystal Wafer Substrate TeO2 0
Acousto-optic modulators (AOMs) are used in the generation of Q-switches in solid-state lasers, cavity evacuation of solid-state lasers, pulse selectors, laser printers, etc. Acousto-optic deflectors (AOD) are used in scanners, laser tweezers, RGB systems for laser projectors, laser scanning microscopy and profilometry. Acousto-optic filters (AOTF) are used in the production of fast scanning spectrometers, multispectral imaging, fiber optic communications, spectral polarimeters and fluorescence spectrometers.

Characteristics
High speed of modulation, high diffraction efficiency, high extinction ratio, small dimension and so on


10x10 mmt Tellurium Oxide TeO2 Crystals , Crystal Wafer Substrate TeO2 110x10 mmt Tellurium Oxide TeO2 Crystals , Crystal Wafer Substrate TeO2 2

Growth equipment

10x10 mmt Tellurium Oxide TeO2 Crystals , Crystal Wafer Substrate TeO2 3



10x10 mmt Tellurium Oxide TeO2 Crystals , Crystal Wafer Substrate TeO2 4
